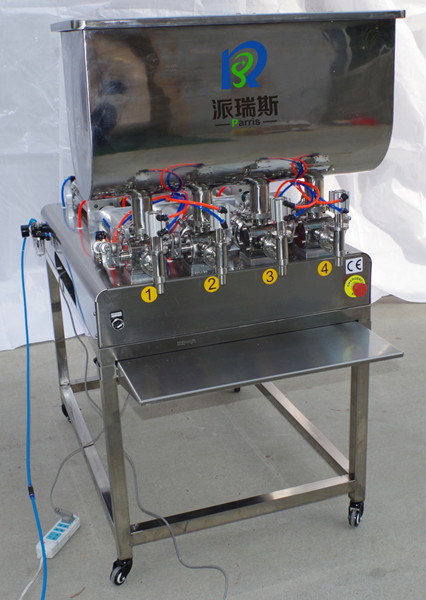

CE 25 To 35BPM Semi Automatic Liquid Filling Machine

I'm Online Chat Now

CE 25 To 35BPM Semi Automatic Liquid Filling Machine

CE 25 To 35BPM Semi Automatic Liquid Filling Machine
CE 25 To 35BPM Semi Automatic Liquid Filling Machine

Large Image :  CE 25 To 35BPM Semi Automatic Liquid Filling Machine

Product Details:
Place of Origin: China
Brand Name: Parris
Certification: CE
Model Number: PSPF1000-4H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 3000-4500
Packaging Details: Standard export wooden box
Delivery Time: 15-25 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

CE 25 To 35BPM Semi Automatic Liquid Filling Machine

Description
Automatic Grade: Semi-Automatic Filling Nozzle: 4 Heads
Filling Volume: 100-1000ml Filling Speed: 20-35 Bottles Per Minute
Filling Accuracy: ±1% Certification: CE Certificate
Voltage: 220V/110V (Customized)
High Light:

35BPM Semi Automatic Liquid Filling Machine

,

25BPM semi automatic liquid filling machine

,

CE semi liquid filling machine

Semi-auto 4 heads Engine oil / Lube oil 100-1000ml Piston Filling Machine With hopper



Overview:



The Model PSPF1000-4H is a product innovated and upgraded on the basis of this companies series products and introduced foreign advanced filling machine technology.. The product is simple and reasonable in design, high in accuracy and easy in operation. The equipment uses special rotating valve to control material-feeding and measurement, especially suits for the filling of high-viscosity material(e.g.crude oil, asphalt, paint,emulsion etc.)Suitable for filling various kinds of highly viscous fluid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises requirements.



Features:



1. All functions co Touch screen

2. Filling volume: 5-100ml 10-280ml 20-500ml 100-1000ml 500-2800ml 1000-5000ml

3. This filling machine has two functions, not only could fill the high viscosity prduce, such as oil, cream and water etc, but also could fill the product like shampoo, body wash etc.

4. Through adjusting the digital display control panel to set the filling time and the interval time so that control the filling volume.

5. Manual finishing the bottle loading, when pass the interval time, filling head automatic fill.

6. This machine adopts imported parts, piston and cylinder which is made of stainless steel and polytetrafluoroethylene. Excellent qualified imported components and perfect mechanical design ensure its leading position among domestic similar machine.



Main Technical Specification:





Model PSPF1000-4H
Filling Material Liquid/Oil/Cream/Lotion/Shampoo
Filling Volume 5-100ml 10-280ml 20-500ml 100-1000ml 500-2800ml 1000-5000ml
Filling Speed 20-35 bottles per minute
Air 0.4-0.6 Mpa
Power 1.8KW
Voltage 220V/110V
Weight 150KGS





CE 25 To 35BPM Semi Automatic Liquid Filling Machine 0



CE 25 To 35BPM Semi Automatic Liquid Filling Machine 1



CE 25 To 35BPM Semi Automatic Liquid Filling Machine 2
