Product Details:
|
| Filling Volume: | 10ml-unlimited | Filling Accuracy: | ±0.5% |
|---|---|---|---|
| Filling Speed: | 10-20 Bottles/min | Motor: | Servo Motor |
| Filling Type: | Gear Pump Filler | Automatic Grade: | Semi-Automatic |
| High Light: | Chili table top liquid filling machine,Juice table top liquid filling machine,Honey glass bottle filling machine |
||

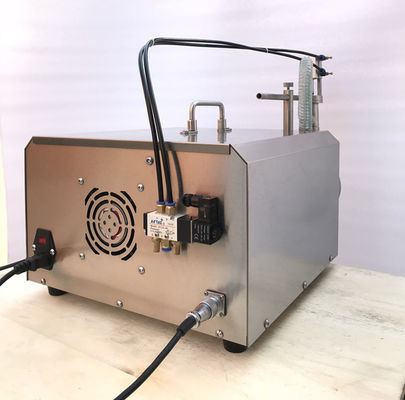

Small Semi-auto Glass Bottle Honey Juice Chili Sauce Filling Machine
Overview:
This machine is suitable for high and low viscosity products ,like shampoo, detergent, lotion,oil and water. All operations are controlled by touch screen. Using servo mortor to confirm filling accuracy : ± 0.5%. Contact parts are 316 stainless steel which is suitable for food, cosmetics,medical fileds.
Main Technical Specification:
| Model | PDF-101 |
| Suitable products | Liquid/Oil/Cream/Lotion/Shampoo |
| Filling Volume | 10ml-unlimited |
| Filling Speed | 10-25 bottles per minute, |
| Power | 1.5kw |
| Air | 0.4-0.6 Mpa |
| Voltage | 220/110V 50HZ single phase/three phases |
| Weight | 35KGS |
| Dimension | 500*380*280mm(L*W*H) |
Features:
1.The Digi-Fil uses a gear pump concept as a metering device to fill correct amounts of gels or liquids into containers.
2.The volume, speed the time between of filling can be designed.
3.Each filling can be fast first and slow later, bubble cam be eliminated.
4.Human interface is achieved using a combined keypad and LCD display configuration.
5.Pump unit easily dismantled for cleaning.
6.Gear Pump is made by 316 stainless steel
7.With a hopper(volume can be made on clients' request) to add flow ability
